Payout

This documentation explains how to integrate Money Fusion's withdrawal API and how to manage webhooks related to withdrawal events.

Authentication

Authentication Illustration

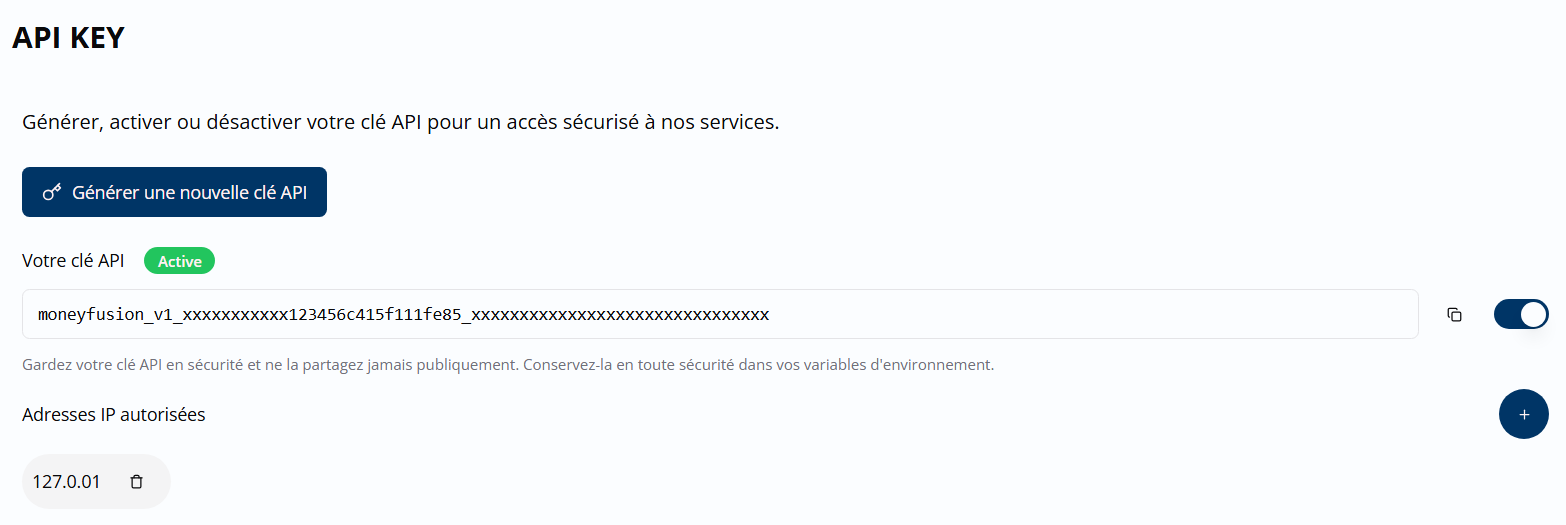

Before making a withdrawal request, you must (go to the Settings section):

Generate an API key from your Money Fusion dashboard.
Add your server's IP address (the one sending the request) in the dashboard.
Include this API key in the HTTP request headers:

moneyfusion-private-key: YOUR_API_KEY
Content-Type: application/json

Withdrawal Endpoint

POST https://pay.moneyfusion.net/api/v1/withdraw

Request Body (JSON)

{
  "countryCode": "ci",
  "phone": "05xxxxxxxxx",
  "amount": 200,
  "withdraw_mode": "mtn-ci",
  "webhook_url": "https://your-server.com/api/withdraw/callback"
}

Response if successful

{
  "tokenPay": "D0h6fjyjkCfi",
  "statut": true,
  "message": "Retrait soumis avec succès"
}

Response in case of error

{
  "statut": false,
  "message": "Tous les champs (countryCode, phone, amount, withdraw_mode) sont requis."
}

The tokenPay field is a unique identifier generated when initiating a withdrawal.
It is used to track and verify the transaction. This token should be stored on your client or server as it will be used for:

Validating and identifying the transaction in webhook notifications.
Linking the initial request to its final status.

This token ensures traceability and security of the withdrawal process.

Required or Not Parameters (JSON body)

Field	Type	Required	Description
`countryCode`	`string`	✅	Country code (e.g., `ci` for Côte d’Ivoire)
`phone`	`string`	✅	Phone number to withdraw to
`amount`	`number`	✅	Amount to withdraw
`withdraw_mode`	`string`	✅	Withdrawal method
`webhook_url`	`string`	NO	URL to which Money Fusion will send the notification

Supported Withdrawal Methods (`withdraw_mode`)

Here are the supported values for withdraw_mode and countryCode:

Country	`countryCode`	`withdraw_mode`
Côte d'Ivoire	`ci`	`orange-money-ci` / `mtn-ci` / `moov-ci` / `wave-ci`
Senegal	`sn`	`orange-money-senegal` / `free-money-senegal` / `wave-senegal` / `expresso-senegal`
Burkina Faso	`bf`	`orange-money-burkina` / `moov-burkina-faso`
Benin	`bj`	`mtn-benin` / `moov-benin`
Togo	`tg`	`t-money-togo` / `moov-togo`
Mali	`ml`	`orange-money-mali`
Congo Brazzaville	`cg`	`orange-money-mali` / `mtn-cg`
Cameroun	`cm`	`orange-money-cm` / `mtn-cm`
Congo RDC	`cd`	`airtel-money-cd`
Gabon	`ga`	`airtel-money-ga` / `libertis-ga`
Ghana	`gh`	`airtel-money-gh` / `mtn-gh` / `vodafone-gh`
Guinée Conakry	`gn`	`orange-gn` / `mtn-gn`
Guinée-Bissau	`gw`	`mtn-gw`
Kenya	`ke`	`m-pesa-ke`
Mauritanie	`mr`	`bankily-mr`
Niger	`ne`	`airtel-money-ne` / `mtn-ne` / `mauritel-ne`
Ouganda	`ug`	`mtn-ug`
Centrafrique	`cf`	`orange-cf`
Rwanda	`rw`	`mtn-rw`
Sierra Leone	`sl`	`africell-sl` / `orange-sl`
Tanzanie	`tz`	`airtel-money-tz` / `m-pesa-tz` / `tigo-tz`
Tchad	`td`	`airtel-money-td` / `moov-td`
Gambie	`gm`	`orange-gm`
Éthiopie	`et`	`safaricom-et`

Webhooks

Your server must listen for the following events on the webhook_url you provided:

- payout.session.completed
- payout.session.cancelled

Sample Webhook Payload

{
  "event": "payout.session.cancelled",
  "tokenPay": "D0h6fjyjkCfi",
  "montant": 205,
  "numeroRetrait": "07xxxxxxxxx",
  "moyen": "orange-money-ci",
  "webhook_url": "https://votre-serveur.com/api/withdraw/callback",
  "createdAt": "2025-07-17T17:35:23.468Z"
}

Possible Events

Event	Description
`payout.session.completed`	The withdrawal was successfully processed
`payout.session.cancelled`	The withdrawal failed or was canceled

Code Example (Node.js / Express)

// Webhook Endpoint
app.post("/api/withdraw/callback", (req, res) => {
  const { event, tokenPay, montant, numeroRetrait, moyen, createdAt } =
    req.body;

  if (event === "payout.session.completed") {
    // Mark the withdrawal as successful in your DB
  } else if (event === "payout.session.cancelled") {
    // Mark the withdrawal as failed in your DB
  }
});
